Ansys Mechanical Training: Dynamic FEA
Design for "Shock & Vibration" with Ansys Dynamic FEA Training
02/
2 days
$1700
Location: mHUB Chicago
1623 W Fulton St, Chicago, IL 60612
Overview:
This Ansys Dynamic FEA Training Class is an advanced course focused on teaching the fundamentals of Dynamics using Ansys Workbench Mechanical. To sign up for this public class, register using the link to the right. For private classes, custom curriculum, or more general information about our classes, please contact us.
Class Objective:
The primary objective of this Ansys Dynamics Training class is to teach participants Structural Dynamic Analysis using the Ansys Mechanical Workbench platform. Upon completion of this course, participants will be able to setup, solve, and diagnose their own Shock and Vibration Analyses in Ansys Mechanical Workbench.
Applicable Software:
Ansys workbench with the following licenses (or equivalent): Ansys Mechanical Pro, Ansys Mechanical Premium, or Ansys Mechanical Enterprise and a direct connection to Native CAD (Autodesk Inventor, PTC Creo, Solidworks, etc).
Topics Covered:
Fundamentals of Vibration and Equations of State
Statics vs. Dynamics in FEA Capabilities
Time-based and frequency-based FEA approaches
Using a Modal Analysis to optimize your design
Dynamic Methodologies: Harmonic Vibration, Shock, Random Vibration, and Drop Test.
Implicit vs. Explicit FEA
Using FEA simplifications like Springs, Point Masses, and Constraint Equations.
After this class you will:
The role of Dynamic FEA in Product Development
Time Management, Troubleshooting, and Gaining Confidence as an FEA “Dynamicist”
Best Practices in Analyzing Parts, Assemblies, and Managing Complex Geometries.
Using a Modal Analysis to optimize your design
Communicating with both Qualitative and Quantitative Results Post-processing
Creating Sensors and Utilizing Design Optimization Techniques
Finally, applications include CNC Machined Components, Sheet Metal, Plastic, Aerospace, Automotive, Consumer Electronics and more!
Who Should Attend:
This class is specifically tailored for those with a technical background and prior experience using Ansys Workbench and Analyzing Static Structural FEA. Therefore, an engineering degree is not a prerequisite, however, it is strongly recommended. As always, an open mind, a creative spirit, and a strong Quantitative Comprehension of Mechanics of Materials are necessary!
"
The Instructor did a good job of walking through the fundamentals to lay a good foundation for the class, and explaining each topic thoroughly.
"
Michael C.

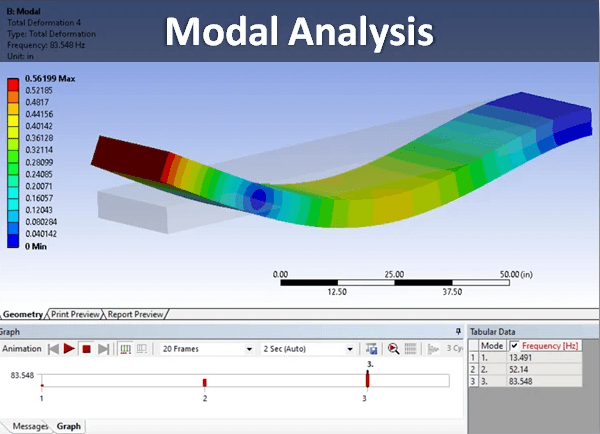

The first step of any Dynamic Investigation using FEA is conducting a Modal Analysis.

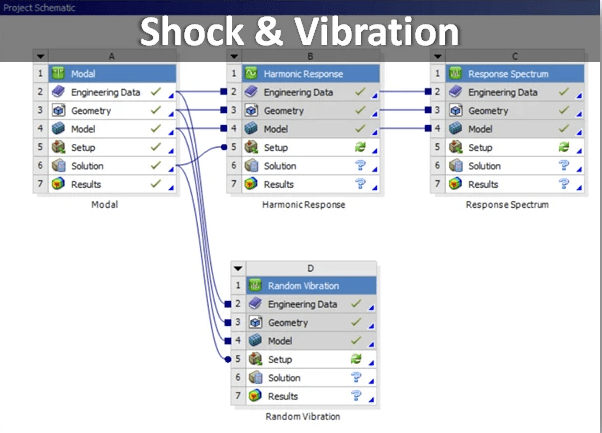

Ansys's Workbench Environment makes it very easy to replicate a full "Shock & Vibe" test program in FEA.
